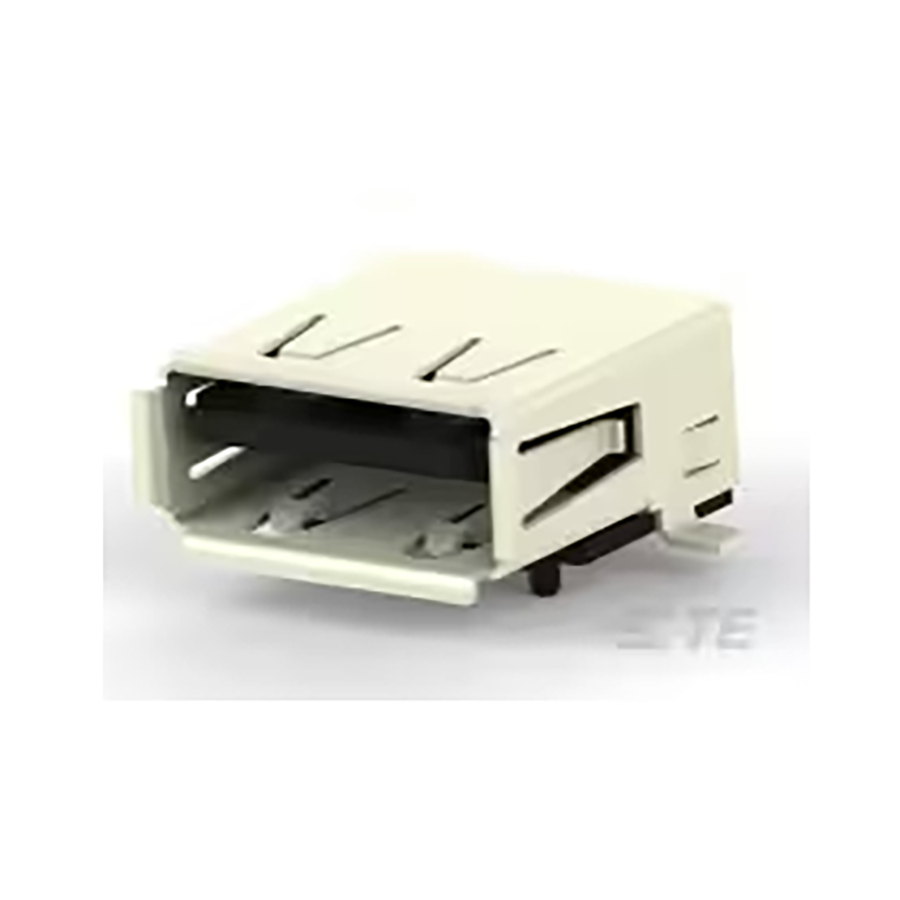

1-292303-6
Manufacturer:
TE Connectivity
Mfr.Part #:
1-292303-6
Datasheet:
Description:
USB Connectors SMD/SMT USB-A (USB TYPE-A) Jack (Female) USB 2.0
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 185 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold, Nickel |
| Pitch | 2.5 mm |
| Type | USB-A (USB TYPE-A) |
| Current Rating | 1 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Jack (Female) |
| Shielding | Shielded |
| Number of Contacts | 4 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Plating | Tin |
| Plating Thickness | 760 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Max RMS Current | 1 A |
| Mounting Angle | Right Angle |
Stock: 2501
Distributors
pcbx
pcbxUnit Price$1.89623
Ext.Price$1.89623
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.89623 | $1.89623 |
| 10 | $1.69618 | $16.96180 |
| 25 | $1.62693 | $40.67325 |
| 50 | $1.57050 | $78.52500 |
| 100 | $1.49527 | $149.52700 |
| 300 | $1.35763 | $407.28900 |
| 500 | $1.25162 | $625.81000 |
